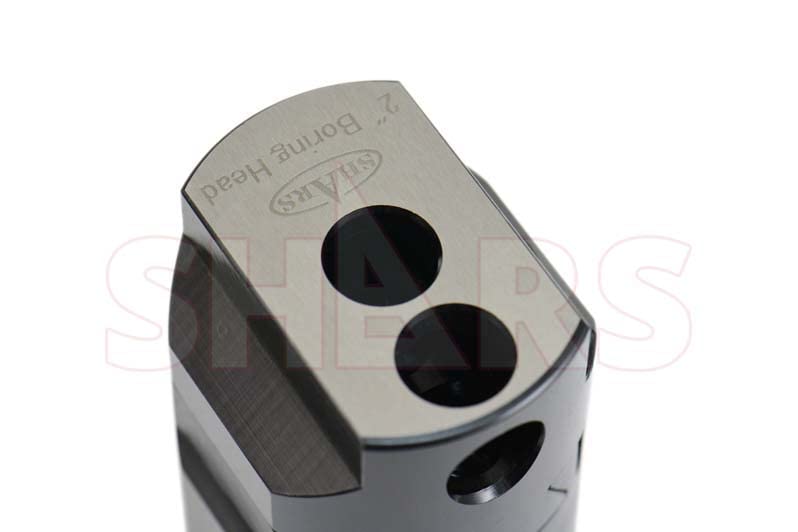

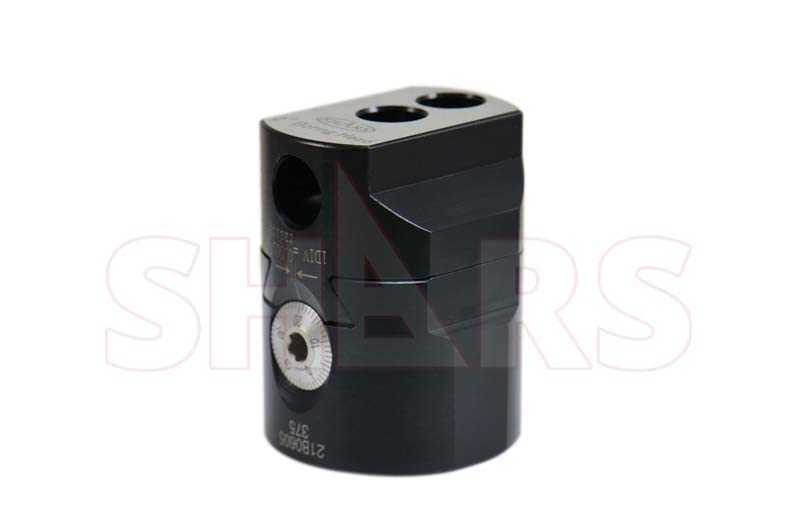

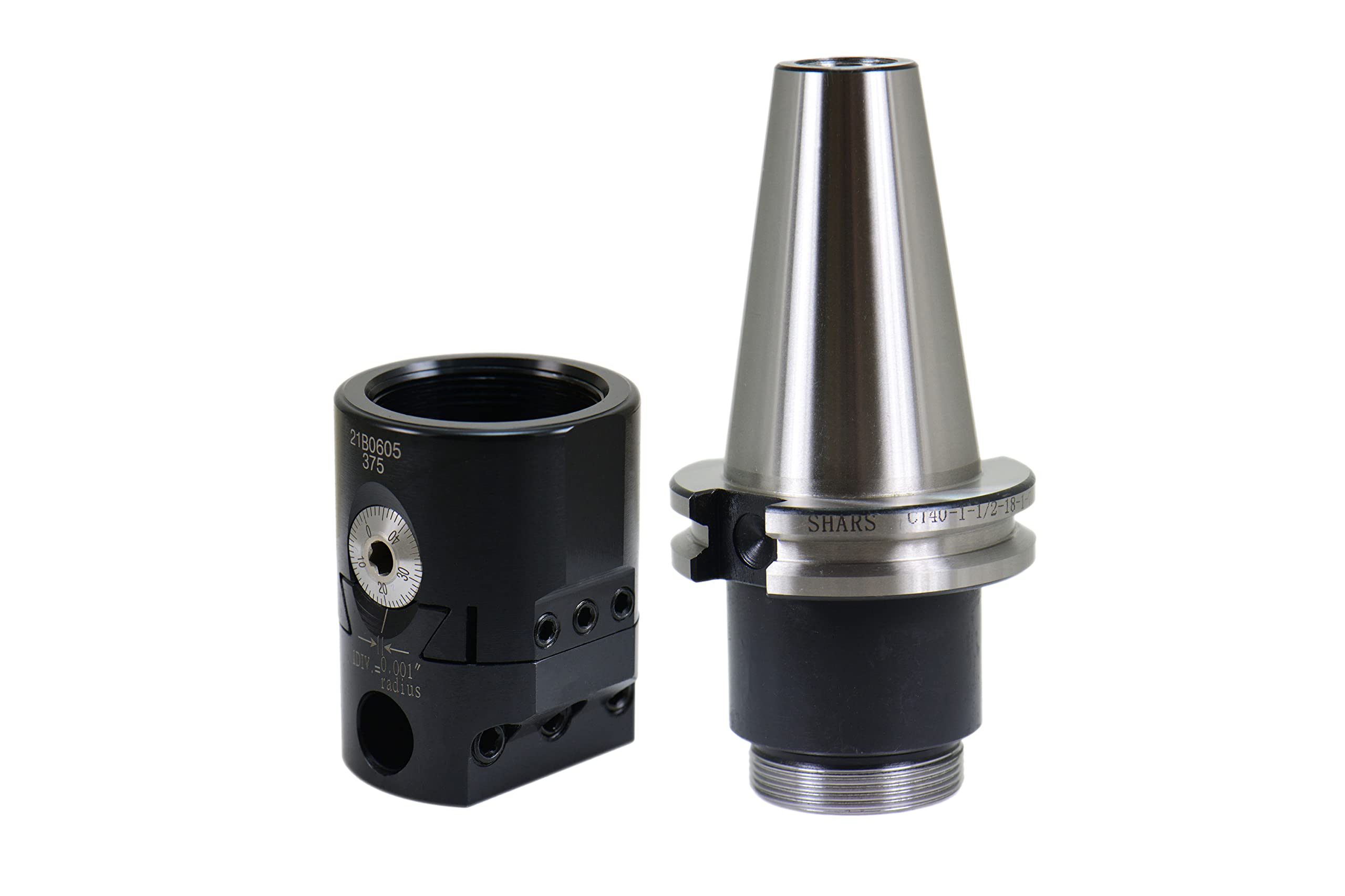

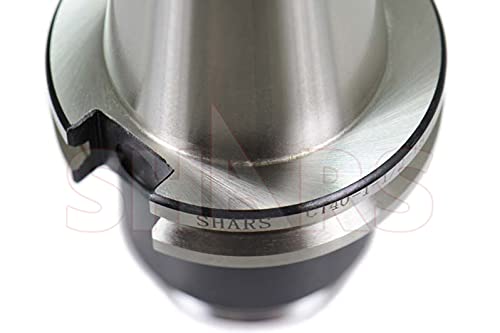

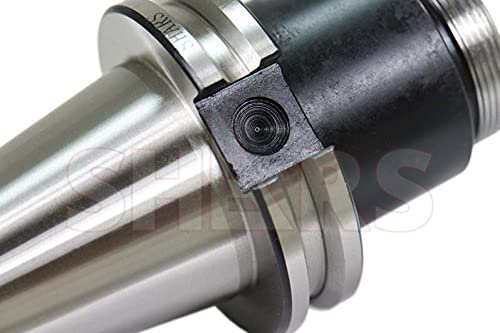

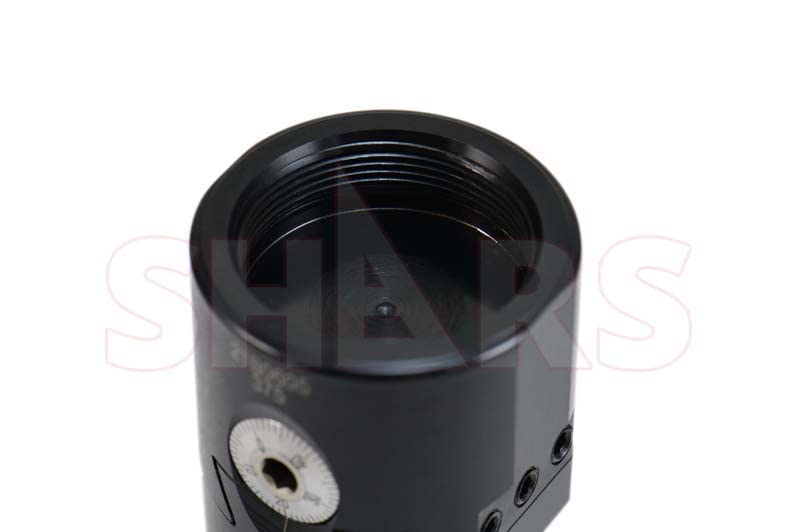

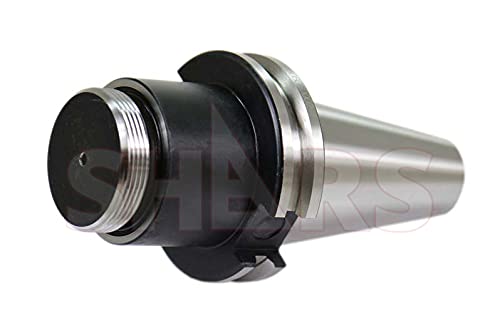

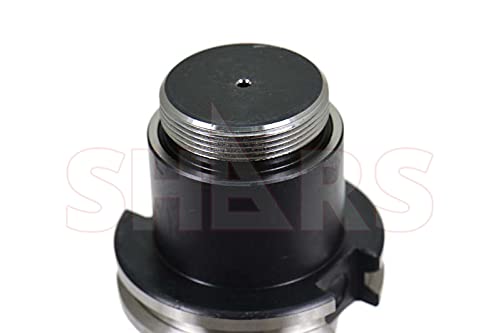

Shars 2" Boring Head with CAT40 1-1/2"-18 V-Flange Threaded Boring Tool Holder 202-8042+202-8017 Set - Precision Machining for Metalworking, Milling & CNC Applications

Features Body Diameter: 2" Boring bar Hole Size: 1/2" Shank Thread Size: 1-1/2-18" Maximum Offset: 5/8" Dial Reading: 0-50 Radius Direct Reading: 0.001" Distance Between Hole Centers: 0.61 Mount Type: Threaded Product Spotlight Internal bore within H7 specification to give tight fitting with cutting's shank5 division of backlash Smaller Backlash Compared to the generic boring head on the market, the main lead screw has minimum amount of backlash in 5 graduation while the generic model has around 10 graduation. Smaller backlash allows the operator to be able to dial in on the desired travel much easier. Travel 1 division is equaled to 0.001" travel in radius Shars R8 Shank 1-1/2"-18 Threads for Boring Head Shars 40 NMTB 5/8-11 Draw Bar for Boring Heads 1-1/2"-18 Shars Morse Taper 3 MT Drawbar Style Shank 1-1/2-18 Threads for Boring Head Shars CAT 40 Shank Adapters 1-7/8" for 1-1/2"-18 Boring Head V-Flange Chuck Shars 1/2" C-6 Carbide Tipped Boring Bar Set Shars 4PCS STFCR 90 Degree 1/2" Shank Indexable Boring Bar Set Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 5.0 out of 5 stars 1 5.0 out of 5 stars 2 4.5 out of 5 stars 8 — 5.0 out of 5 stars 1 5.0 out of 5 stars 7 Price $31.95$31.95 $41.45$41.45 $38.95$38.95 $59.50$59.50 $24.34$24.34 $71.49$71.49 Order No. 202-8001 202-8010 202-8012A 202-8017 404-7120 404-7164

Body Diameter 2"

Boring Bar Hole Diameter 1/2"

Threaded Mount Size 1-1/2-18

Maximum Offset 5/8"

Dial Reading 0-50

Radius Direct Reading 0.001"

Mount Type Threaded

Distance Between Hole Centers 0.61
